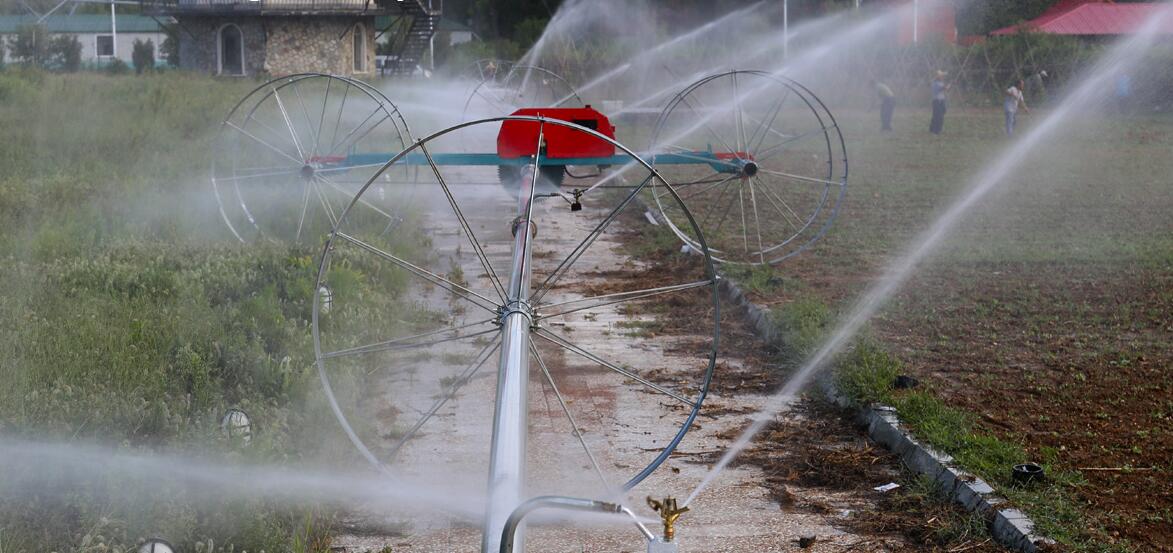

Side roll irrigation machine
it is a kind of large semi-automatic irrigation equipment, which is composed of driving cart, water suction pipe, sprinkler head, and its applicator, automatic drain valve and wind proof support rod. Suitable for different water source conditions, with strong climbing ability, and according to the situation of the field, it can be assembled to use the long unit and short unit, is relatively well-developed sprinkler irrigation equipment.

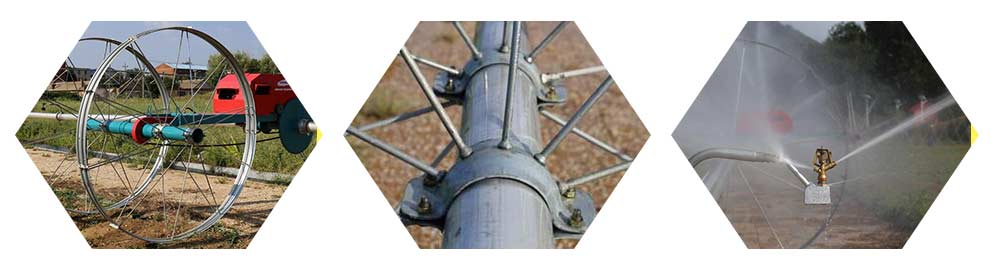

Structural features:
1. The whole water delivery pipe moves in a rolling way with short working time;
2, hydraulic motor transmission power, infinitely variable speed with strong field walking ability
3, use a handle to complete all operations by simple operation;
4. After the water source cut off, the pipe joint and the patented drain valve will automatically drain water at the same time, so the drainage speed is fast;
5、爬坡能力強,節省費用;
6、裝拆方便,適用于不規則形狀地塊;
7、配中小射程旋轉式噴頭,余地小,不損傷作物,灌水均勻。
應用領域:
滾移式噴灌機適用于長方形或不規則形狀的平地或坡地,坡度不應大于25%。
技術參數:
移動管道直徑 | 125mm |
鋁合金管壁厚 | 1.8-2.1mm |
單臺機組灌溉面積 | 450-1200畝 |
水壓 | 0.3-0.5MPa |
系統水量 | 75-120噸/小時 |
中央驅動車發動機功率 | 6馬力-8馬力 |
鋼圈直徑 | 1980mm |
單噴頭流量 | 3-5噸/小時 |
噴頭材質 | 全銅 |
鋁合金管壁厚 | 1.8-2.1mm |
離地高度 | 1m |
